Pharma line

Entirely made of stainless steel 316L and calculated according to the Asme code. The inner areas which become in contact with steam have sanitary finish. The whole chamber is thermally insulated.

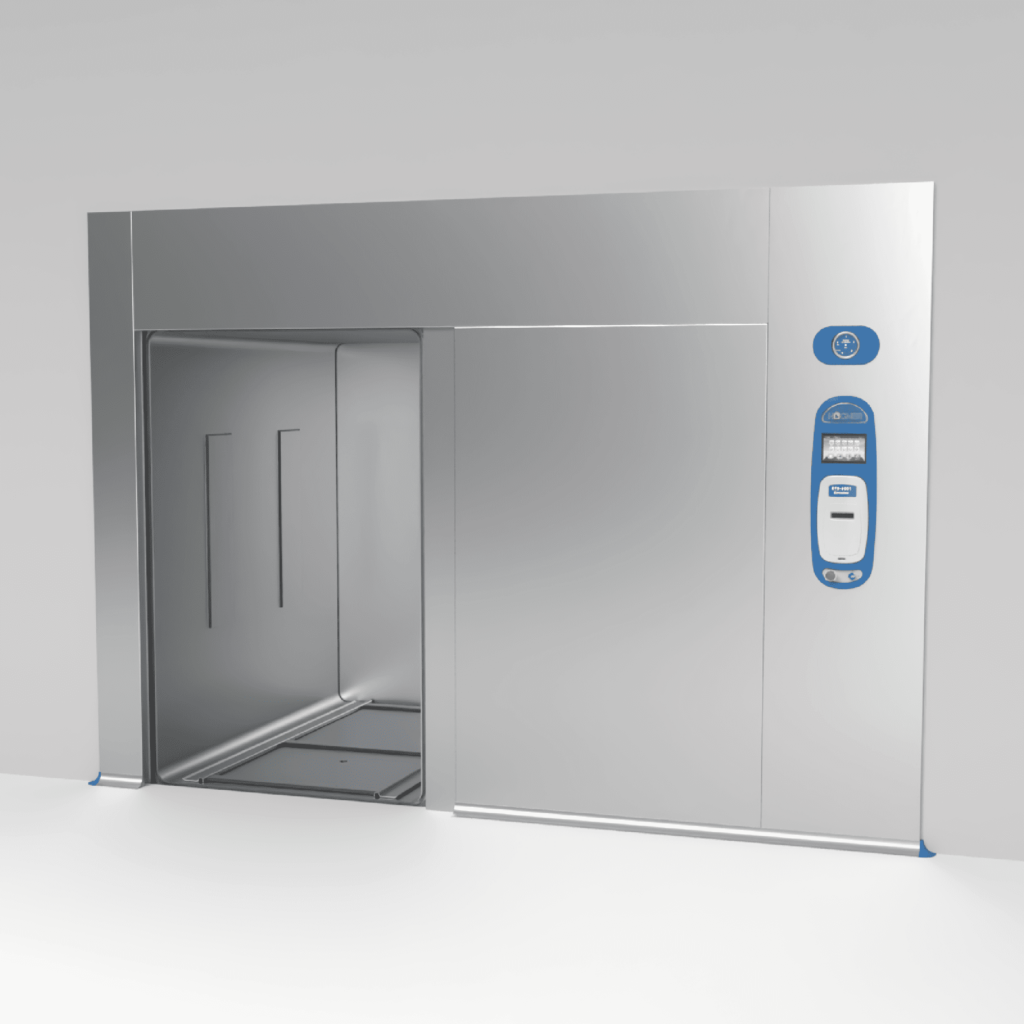

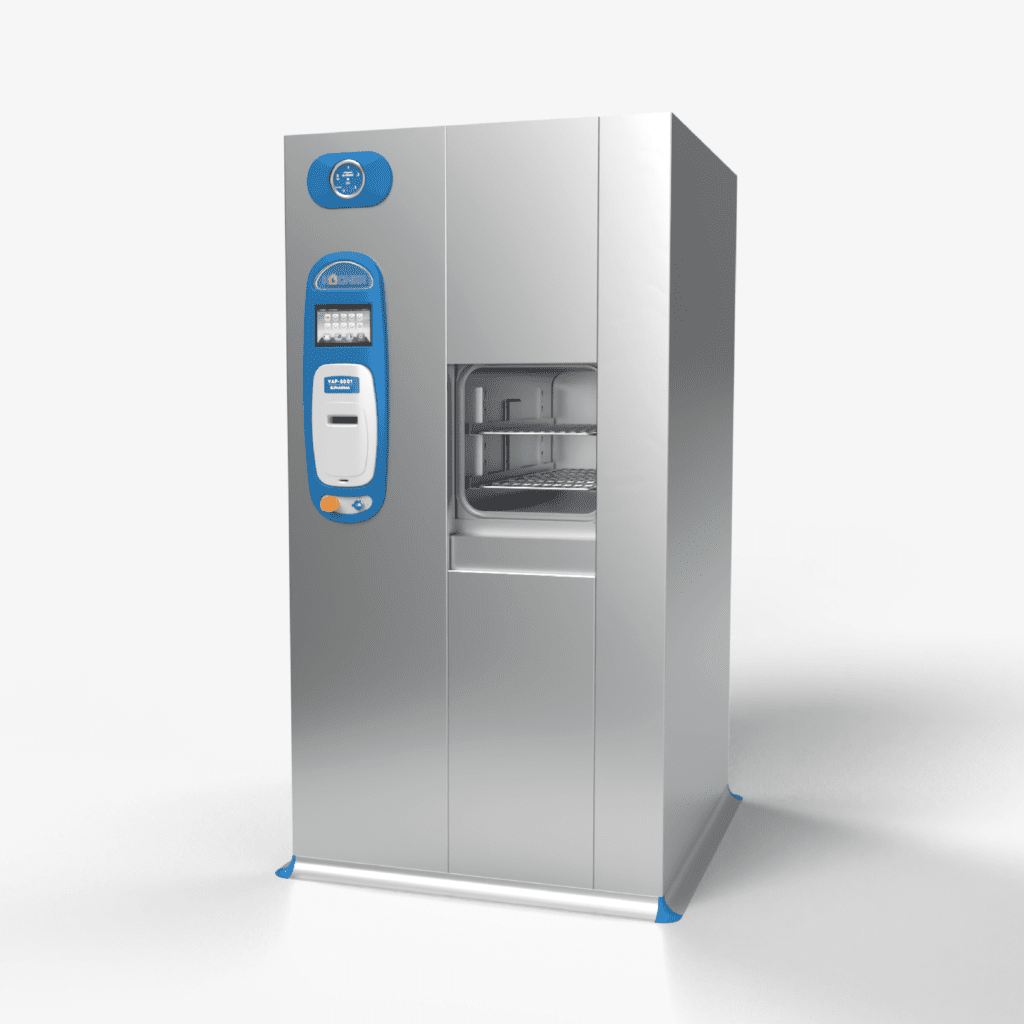

Vertical or horizontal airtight sliding doors with silicone gasket. Double-door sterilizers fitted with a safety system which prevents both doors from opening at the same time.

Microprocessed command with industrial PLC and HMI touch screen, compliant with FDA 21 CFR part 11, which guarantees data traceability. There are different access levels through passwords to set the different parameters for each cycle.

Designed to work with apyrogenic steam coming from a central line. If this is not a possibility, the equipment can be delivered with their own built-in steam generator. This generator may be heated electrically or by means of industrial steam coming from the plant.

An alphanumeric printer prints all process data and variables.

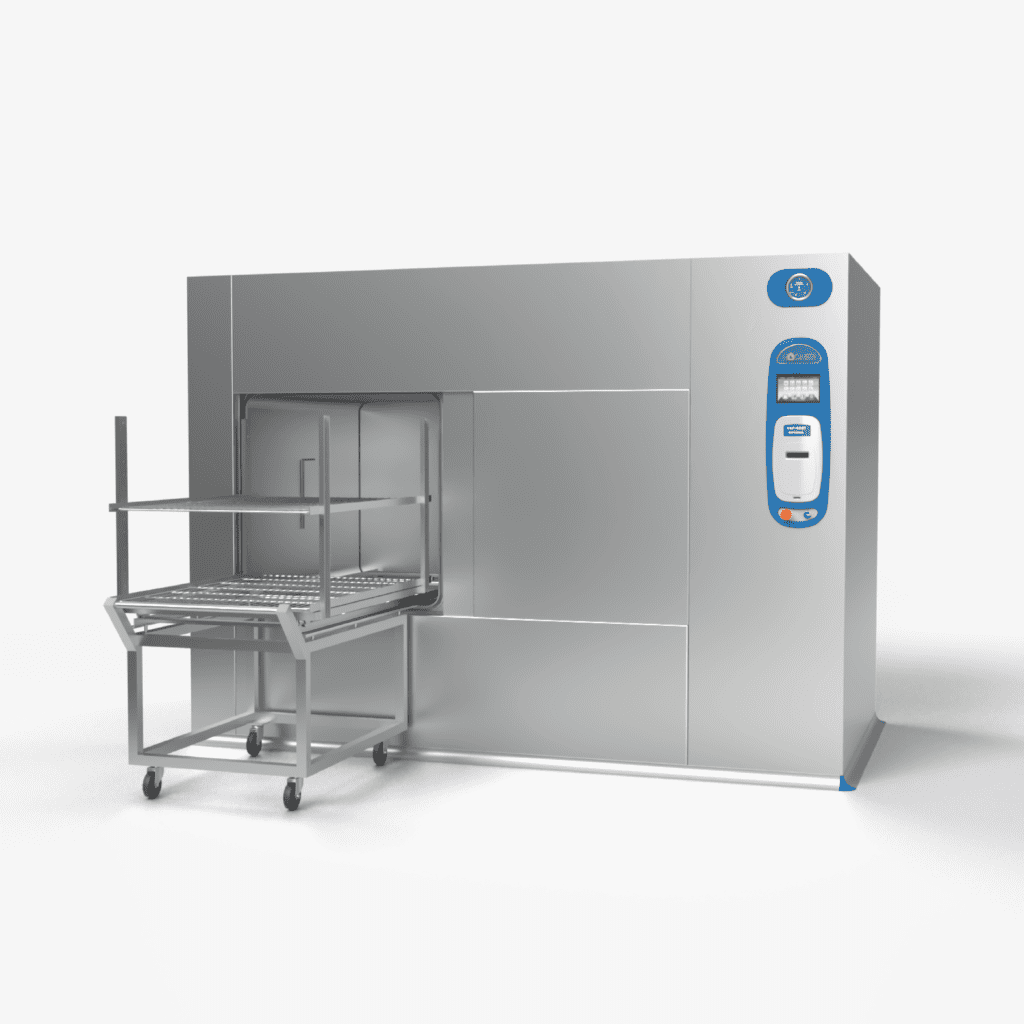

Composed of loading trolleys and transfer trolleys to place and transfer the products to be processed in the autoclave. For glass vials or ampoules, trolleys are designed to allow loading of trays and to optimize the useful capacity of the chamber. Every loading system is analyzed and designed based on the different kinds of materials to be processed, this being a key element in the design of an autoclave.

BSL2.
Drying of rubber plugs.
Double wall cooling system.
SIP filter.
Steam sampling.
Water saving in the vacuum system.
No Break (UPS).
Ampoules leak test.
Ampoules washing.

*We manufacture customized chambers for capacity greater than 30,000 L.
